KSS Solid Trunking – Fire Resistance PVC wiring duct

Rated 0 out of 5

0 Reviews

In stock

Safety / Protection: Fire and dustproof construction.
Durability: Constructed of strong, warp-proof PVC to maintain durability.
Customisation: Large size and customisation choices.
Efficiency: Assists with the organisation and routing of large quantities of wires.
Professional Installations: Reliable for industrial and commercial usage.
Design: Solid trunking, no-slot design
Material: Warp-proof self-extinguishing UL-approved PVC
Flammability Rating: UL 94V-0, NF fire resistant M1
Color: Standard Grey (custom colors available on request)
Temperature Resistance: Vicat softening point 86°C, UL test up to 50°C
Length: Standard 2 meters

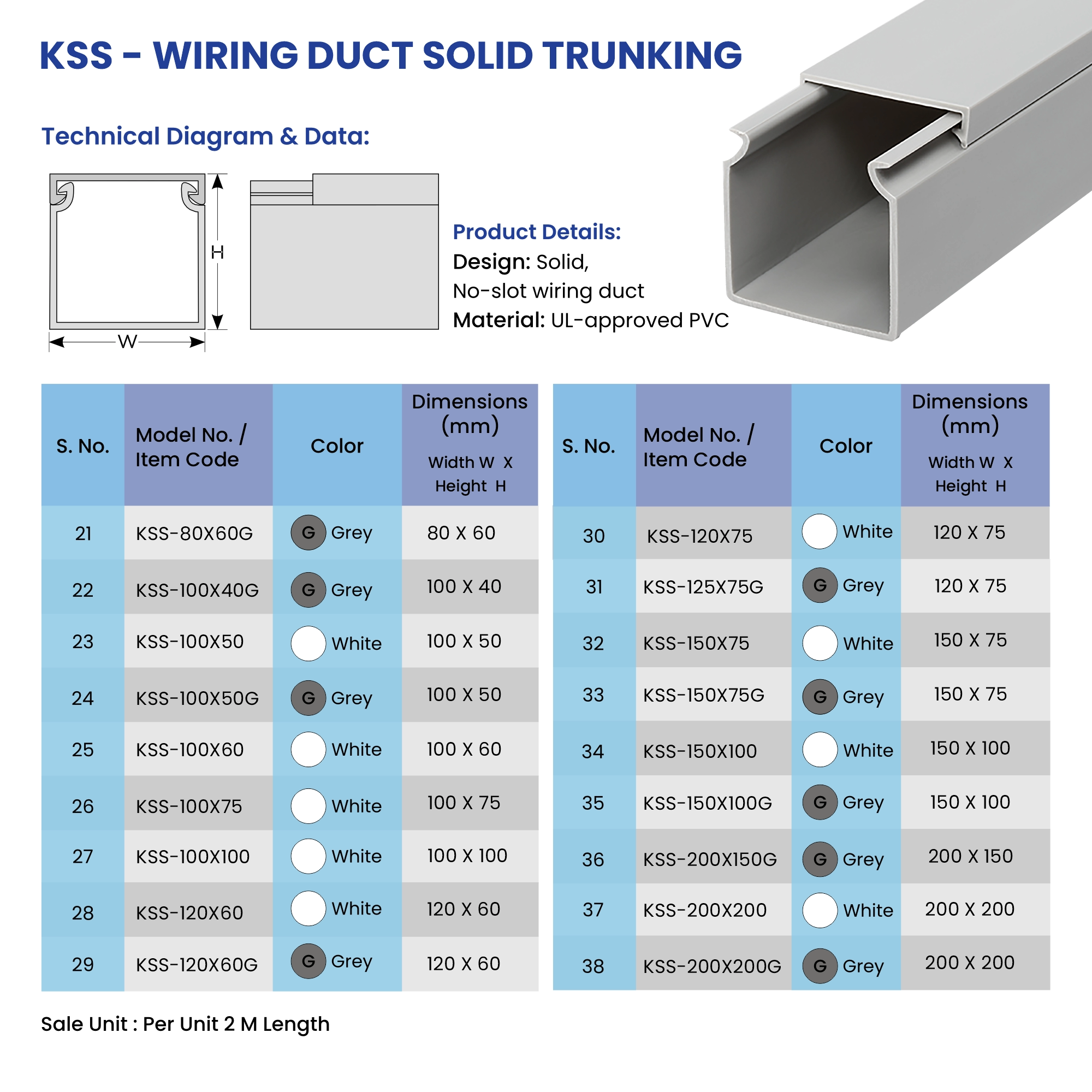

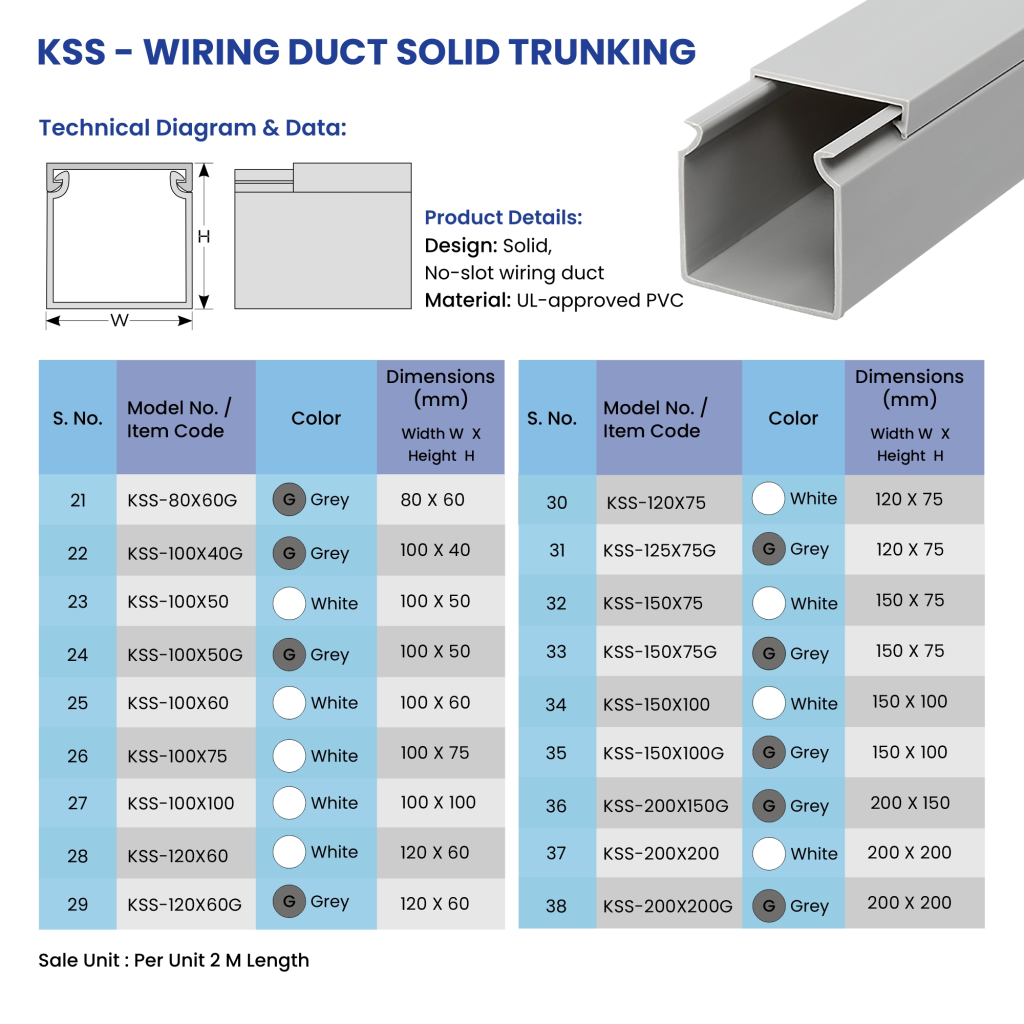

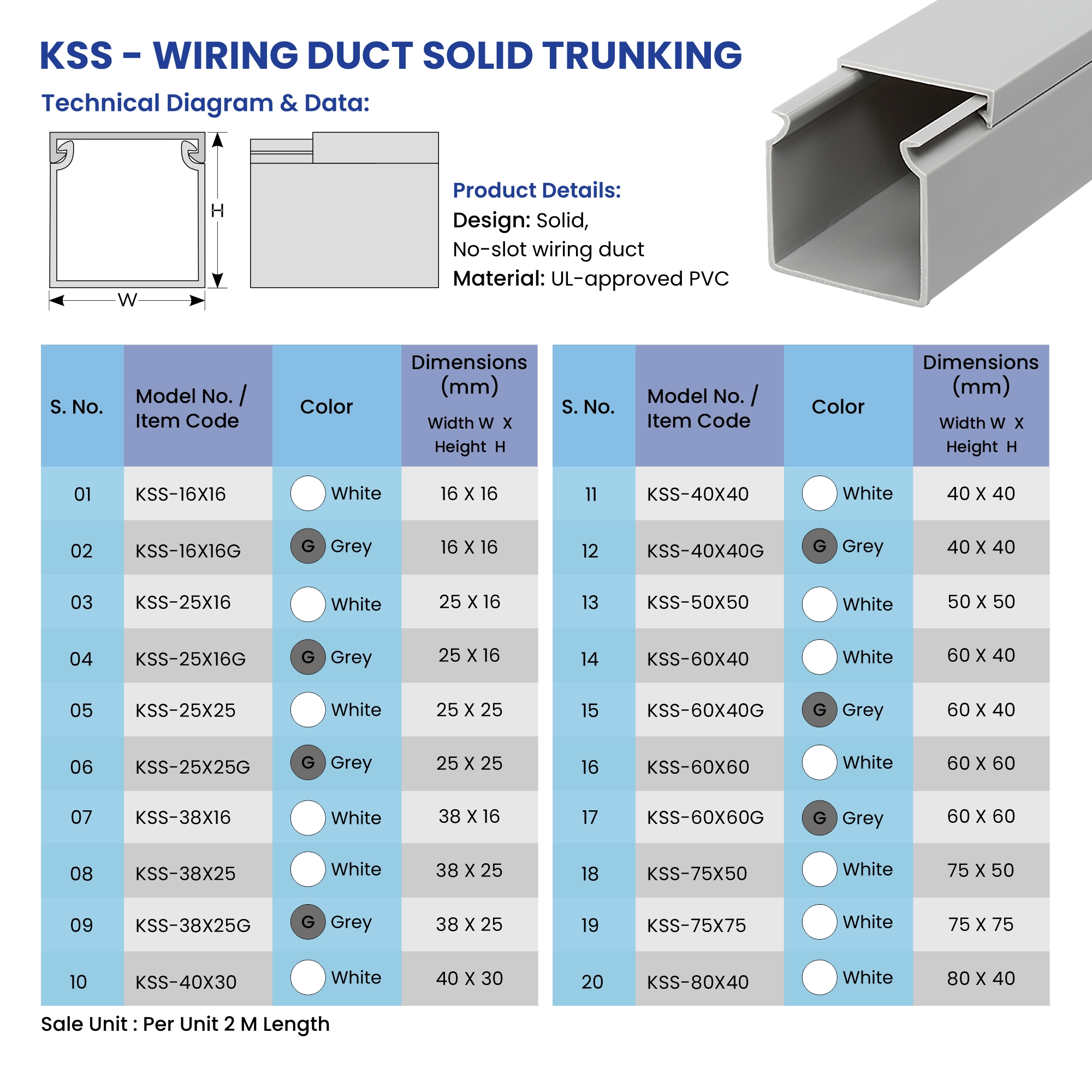

Sizes Available: From 15×25 mm up to 300×100 mm
Wire Capacity: Ranges from 3–10 pcs up to 1040–1200 pcs (16–14 AWG)

SKU: N/A

Product details

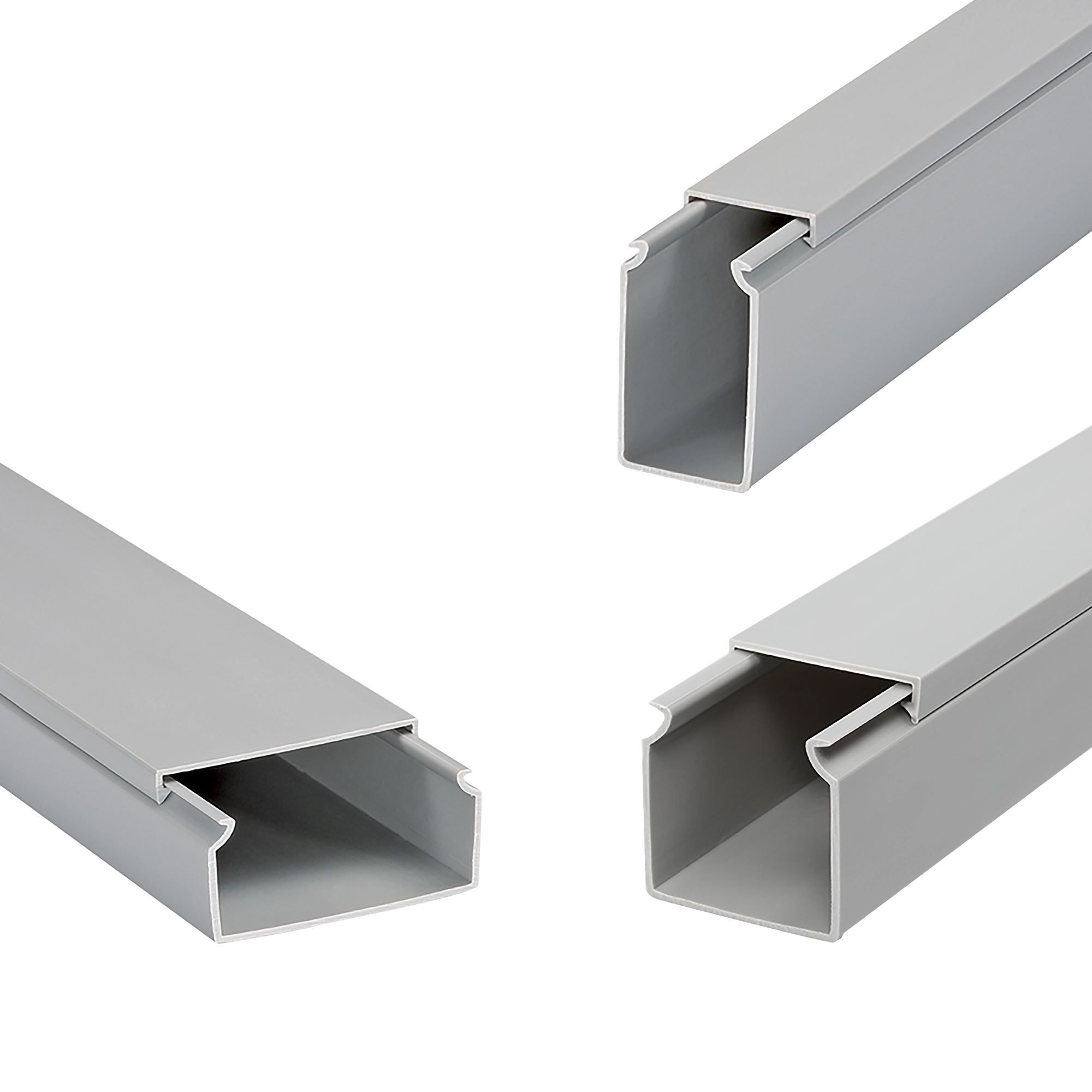

KSS Solid Trunking is a high-grade wiring duct used to ensure the safety and efficient handling of cables in industrial and commercial environments. It has a no-slot design, and this makes it best suited to external wiring, and installations where one does not need to extract the wire. This trunking is made of self-extinguishing UL-approved PVC, which is warp-proof and offers a high level of durability, flame resistance (94V-0 rating), and compliance with the NF M1 fire tests. Its Vicat softening point of 86 °C and UL test performance of 50 °C make it capable of enduring harsh environments, coupled with insulating the cables against external damage like dust, rodents and physical impacts.

The KSS Solid Trunking comes in various sizes (width x height) and can support 3 to 1200 wires (16-14 AWG), which makes this a flexible and efficient solution to the issue of wire routing in devices and factory installations. It can be customised to a variety of project needs with custom colours, sizes, and lengths.
